HOMEERVBypass Type

Bypass Type

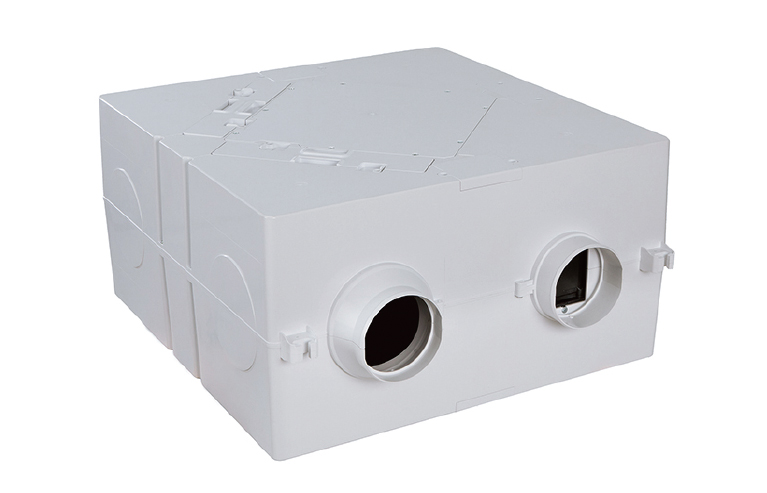

Bypass type (NHB-8 type)

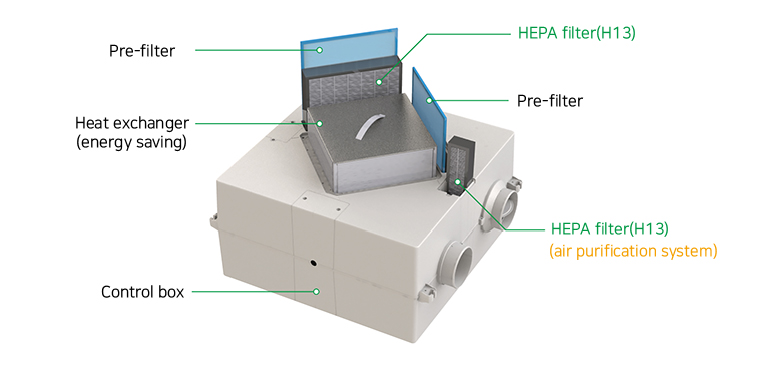

  • Applying 50mm HEPA filter
  • Air purifying heat exchanging system 8-direction ventilator
  • Built in various environments to remove fine dust and harmful gases
  • Effectively supplies fresh air
  • Reduces concentrations of CO₂, VOCs, radon, and more

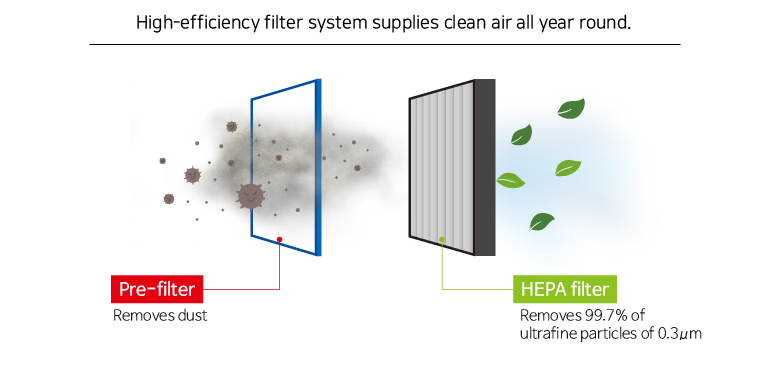

  • Removes ultrafine dust with a 50mm HEPA filter
  • Internal circulation mode (air purification system) option

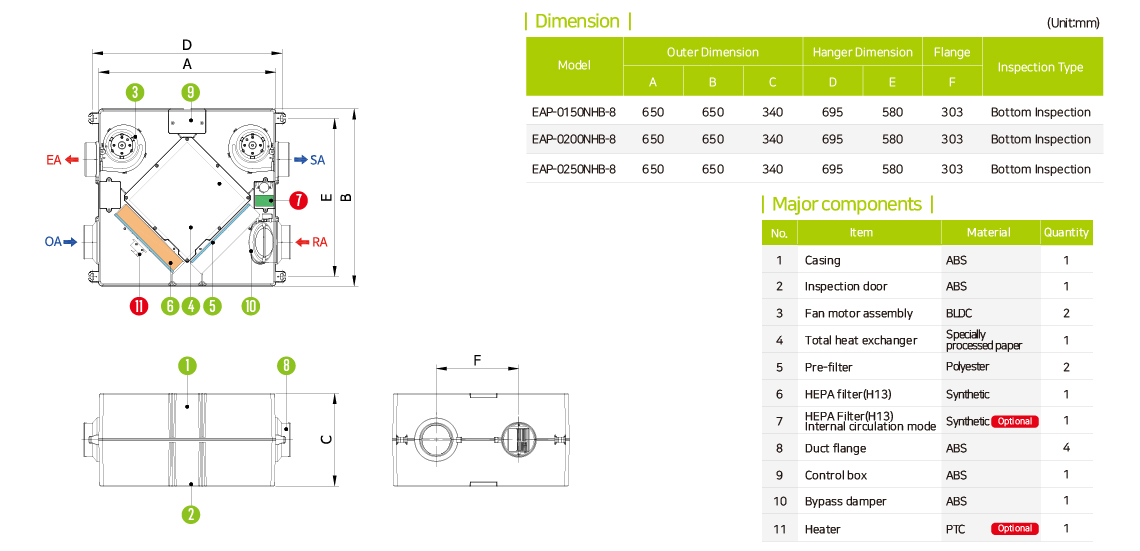

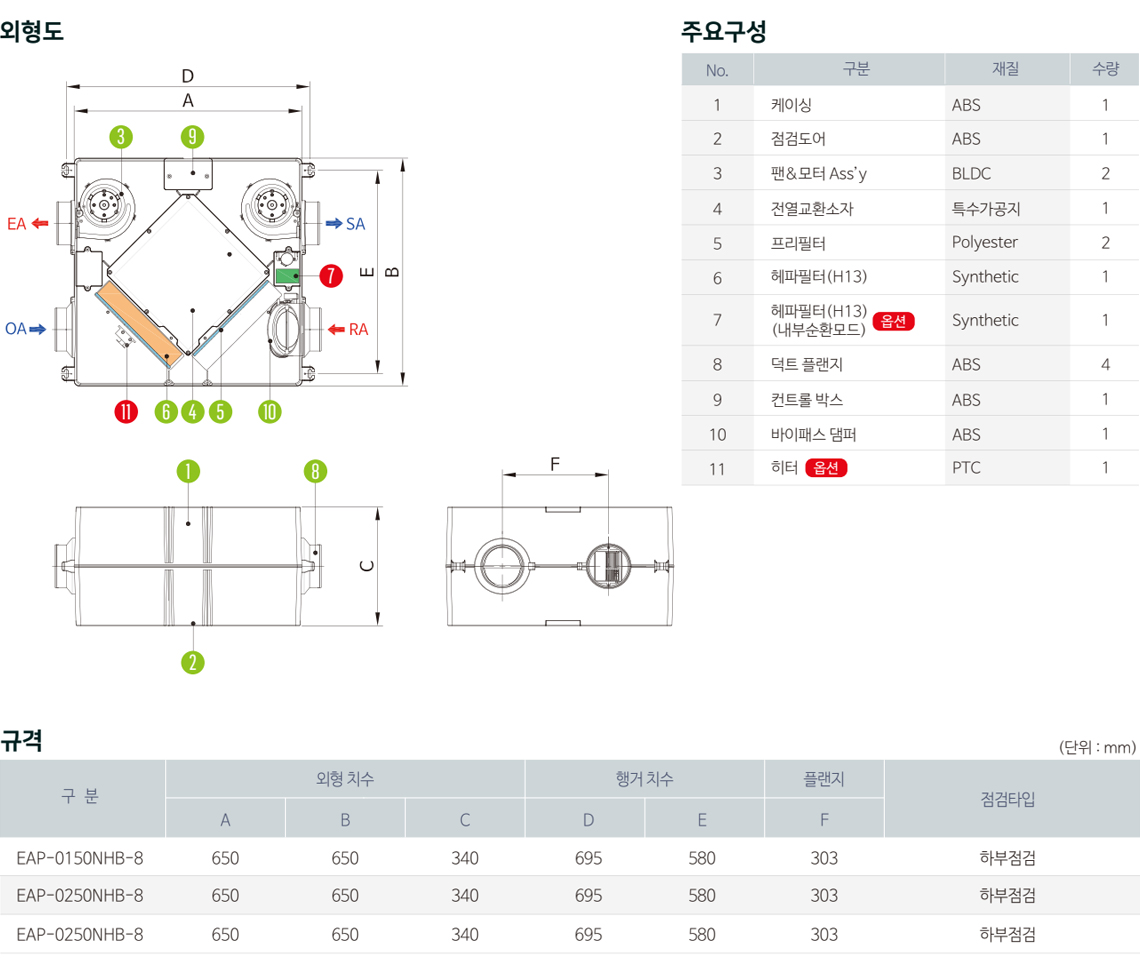

Standard Specifications

Model Air Volume Power Consumption Duct Diameter External Static Pressure Noise Total Heat Exchange Efficiency(%) Energy Coefficient
High Medium Low W Ø Pa dB Cooling Heating Cooling Heating
EAP-0150NHB-8 165 150 75 48.0 125 70 or more 40 or less 45 or less 70 or more 8.00 or more 15.00 or more
EAP-0200NHB-8 165 150 75 71 125
EAP-0250NHB-8 220 200 100 80 150
Note
  • Power : Single phase /220V/60Hz
  • Heat Exchanger : Plate type(specially processed paper)
  • Air volume control : High, Medium. Low(3 levels)/Sleep function
  • Filters : Pre-Filter / Heap filter 50mm
  • Motor : BLDC
  • Casing : ABS
  • Warranty period : 2 years
  • Optional : Internal circulation filter / Activated carbon filter / Motorised damper / Backdraft damper / PTC heater Wired remote controller / C02 fine dust detection sensors / Home network integration
