HOMEERVStandard Type

Standard Type

Standard Large-capacity Type (SS/S type)

School, government office, hospital, office building, convenient facility etc.

  • Installed in various environments to remove fine dust and harmful gases
  • Fresh air inflow effect
  • Reduces the concentration of CO₂, VOC, radon, etc.
  • Remove ultra-fine dust due to enhanced filter (Hepa filter applied) optional

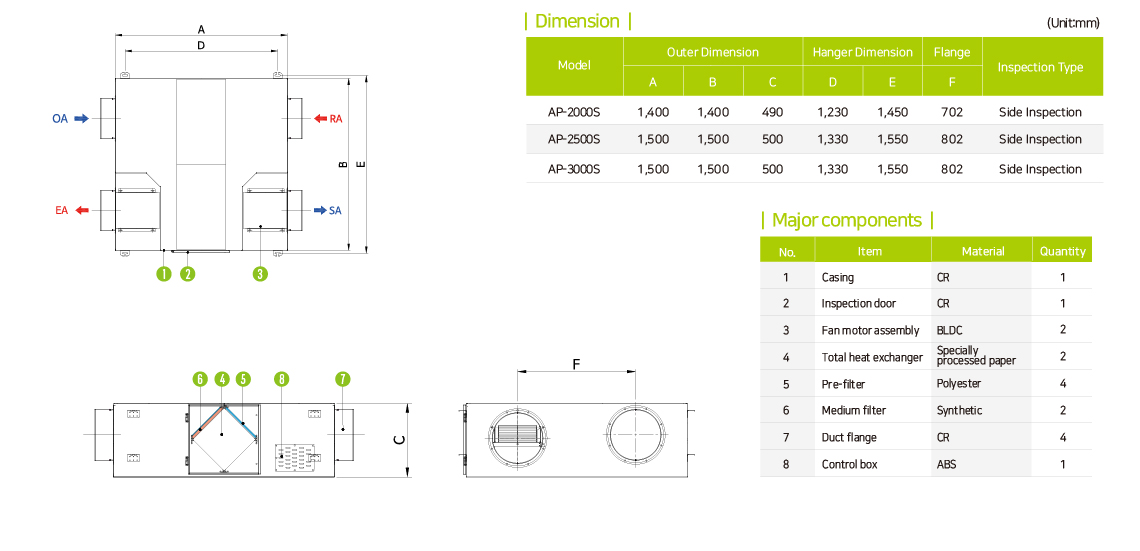

Drawings

Standard Specifications

Model Air Volume Power Consumption Duct Diameter External Static Pressure Total Heat Exchange Efficiency(%) Energy Coefficient
High Medium Low W Ø Pa Cooling Heating Cooling Heating
AP-2000S 2,000 1,818 909 1,200 350 120 or more 45 or more 70 or more 8.00 or more 15.00 or more
AP-2500S 2,500 2,270 1,135 1,500 350
AP-3000S 3,000 2,500 2,000 1,800 350
Note
  • Power : Single phase /220V/60Hz
  • Heat Exchanger : Plate type(specially processed paper)
  • Air volume control : High, Medium. Low(3 levels)/Sleep function/Energy-saving function
  • Filters : Pre-Filter / Heap filter 15mm

  • Motor : BLDC
  • Casing : CR
  • Warranty period : 2 years
  • Optional : Activated carbon filter / Motorised damper / Backdraft damper / PTC heater/Wired remote controller / C02 fine dust detection sensors / Control control system integration(RS-485 communication/RF wireless
